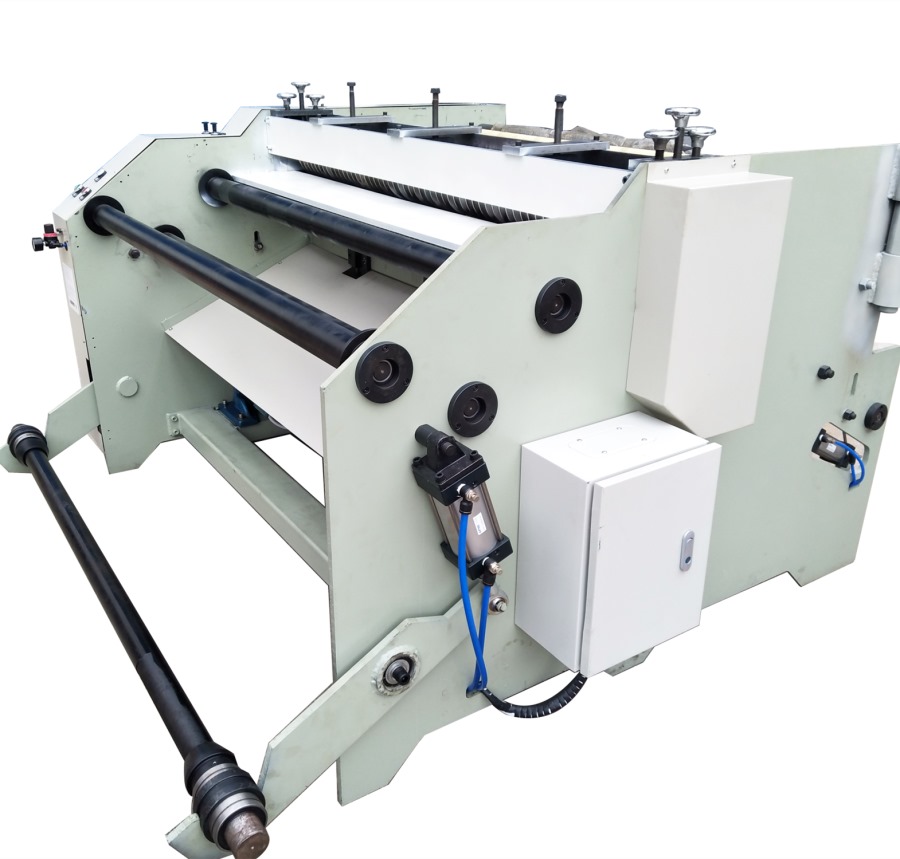

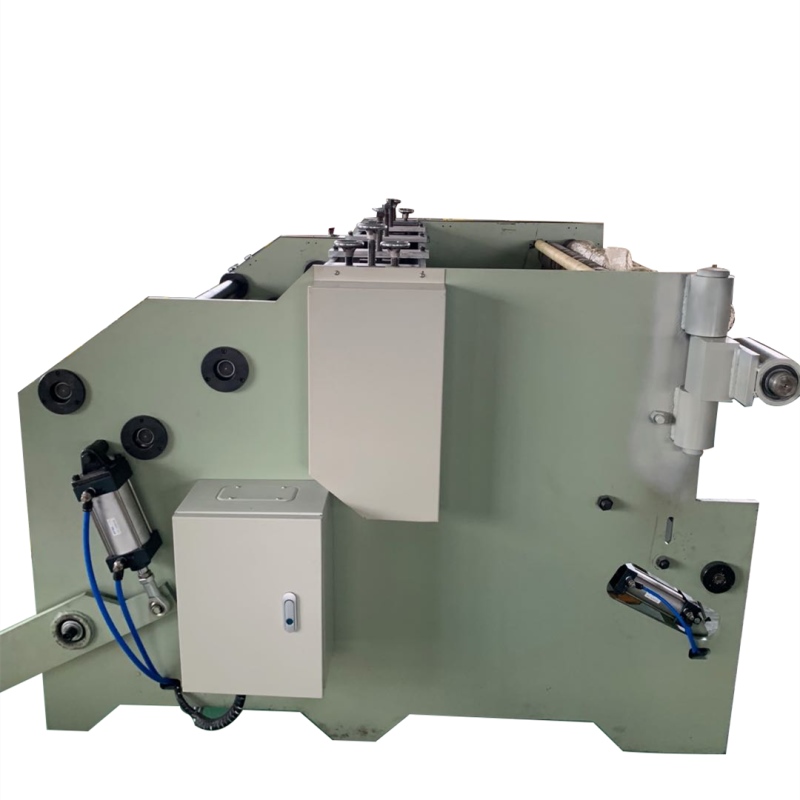

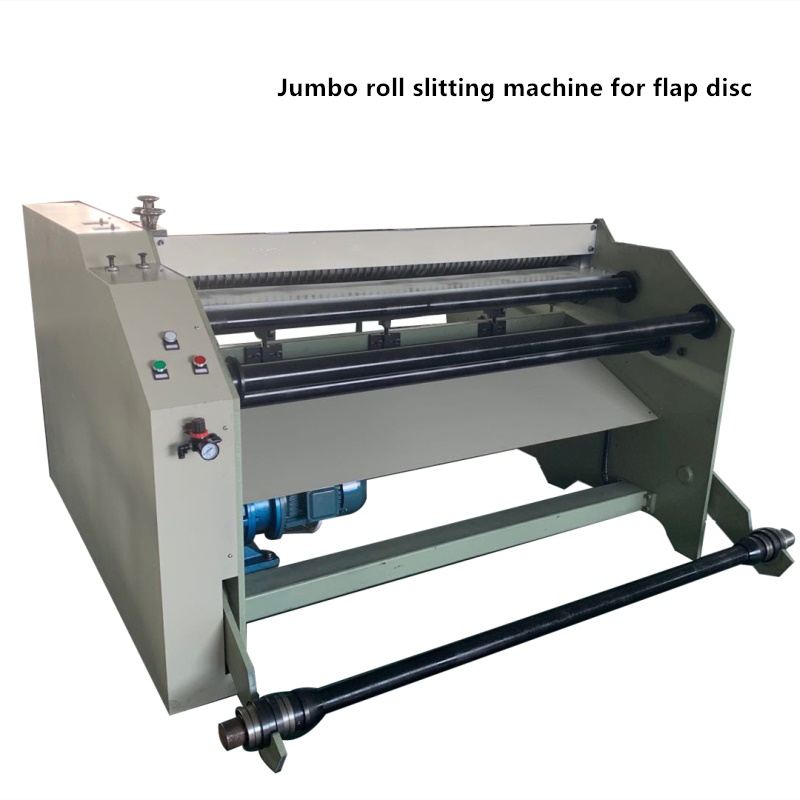

Abrasive Jumbo Roll Slitting Machine for Making Flap Discs

This Abrasive jumbo roll slitter is full automatic machine, it can cut the abrasive jumbo roll width up to 1600mm, or customize to 2000mm. high efficiency.
INQUIRY

This Machine is mainly for cutting abrasive cloth jumbo roll to small rolls at fixed sizes, the width can do at custom needs.

Technical Details:

Ø Max width of jumbo roll: 1460mm

Ø Max Length of jumbo roll： 50-120 meters ：

Ø Slitting size: available to customized as requested

Standard 14-29mm

Ø Slitting speed: adjustable, 4-8 meters per minute

Ø Power: 3.5kw; 380 V - 50Hz, 3 phase

Ø Machine Dimension: L 2200* W 2200* H 1200mm

Ø Machine Weight: 1000kg

Ø Precision transmission devices

Ø With mechanical correction structure

Ø Airtac Cylinder for feeding system, convenient for loading and unloading the jumbo roll

Ø Professional CNC system, pneumatic controlling system

Ø Precision transmission devices
