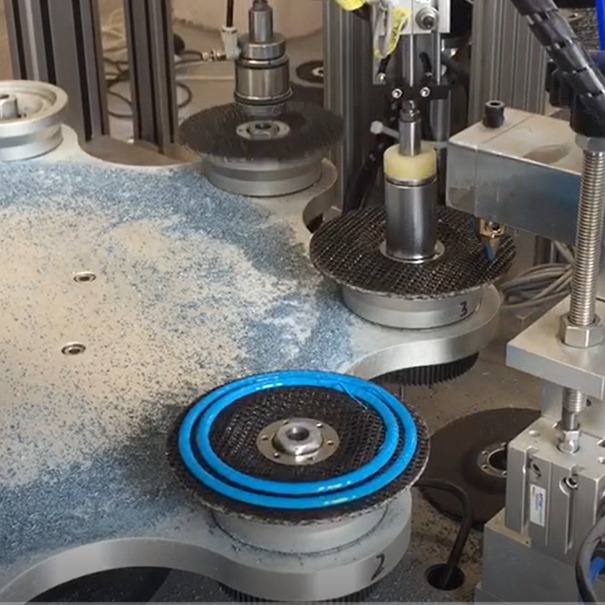

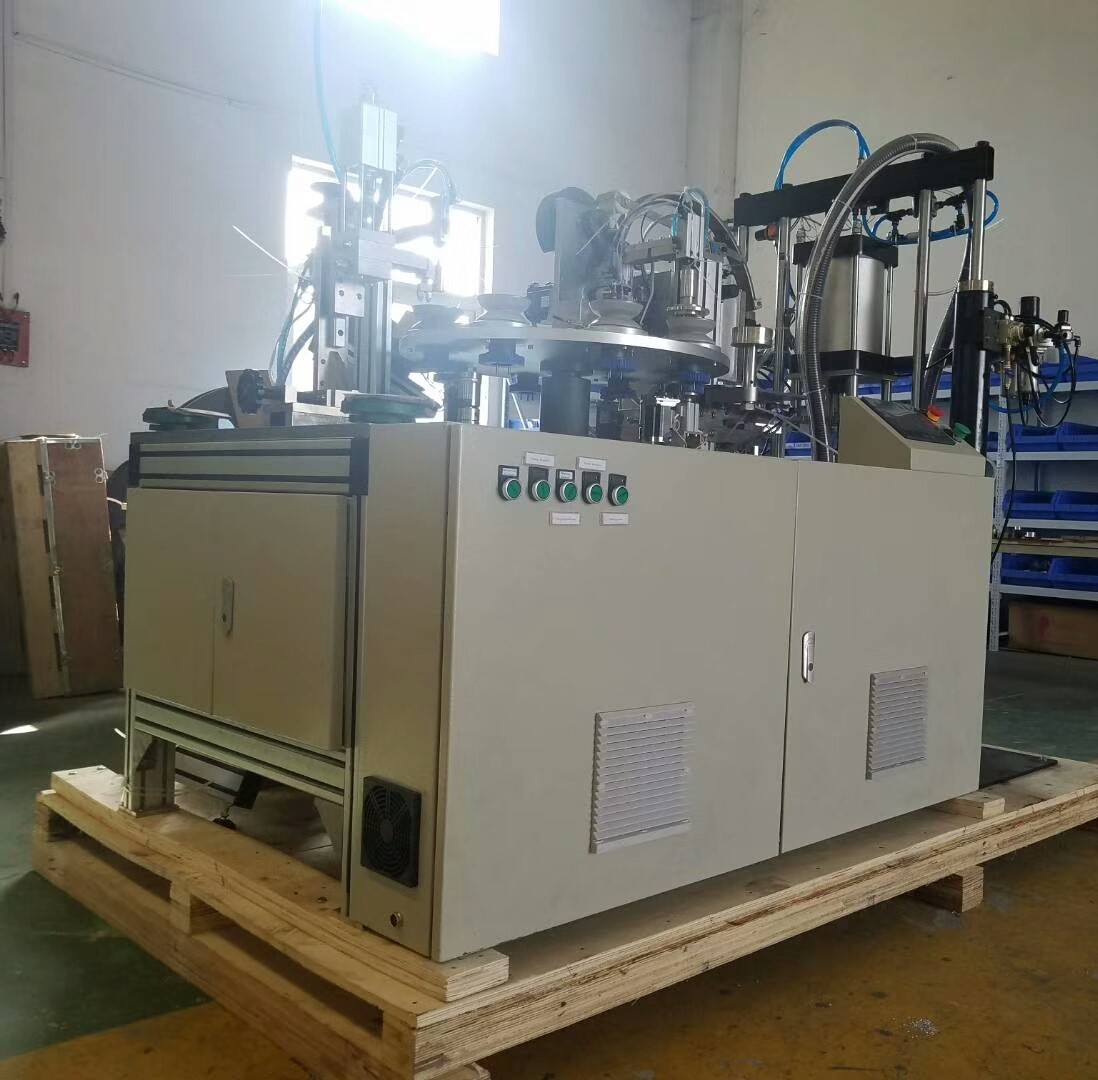

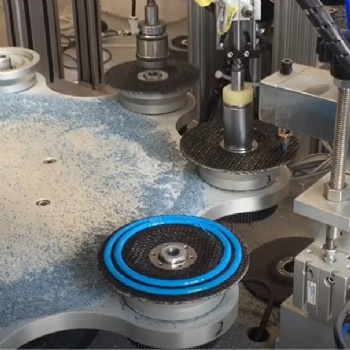

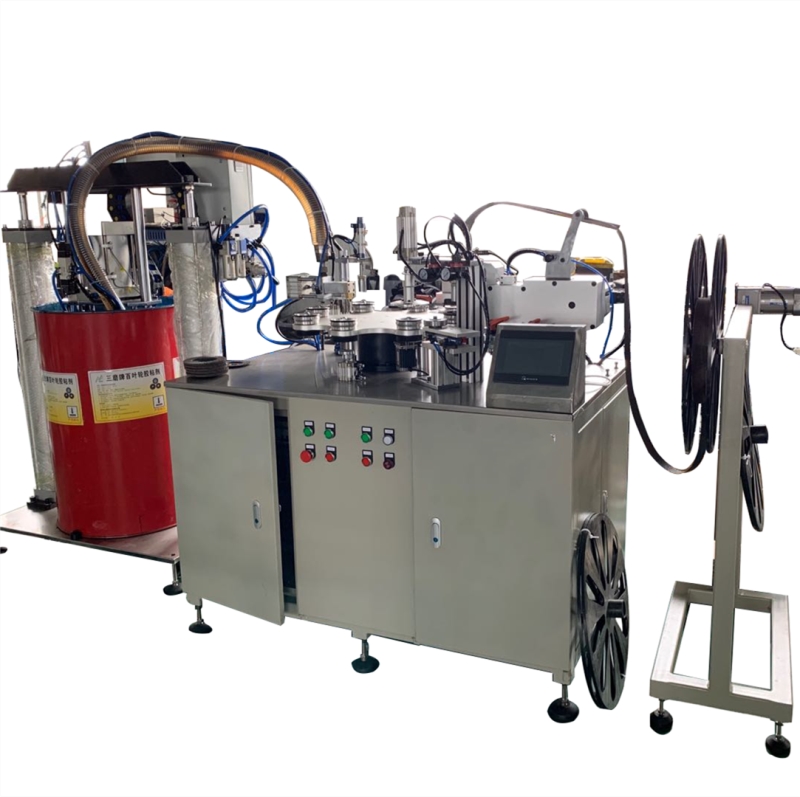

Basic information for automatic flap disc machine
Ø Working Capacity: up to 11-14pcs/mins
Ø Flap Disc Size: Φ100mm~Φ180mm, T27/T29
Ø Flap length: 14-22mm
Ø Belt width: 11-35
Ø Backing pad materials: fiberglass backing pad and plastic backing pad
Ø Backing size: 90-170mm
Ø Glue pump: 280KG
Ø Power: 6kw; 380 V - 50Hz, 3 phase
Ø Glue Qty: 4-30g(±0.02g), able to adjust
Ø Machine G.W:1000KG
Ø Machine N.W: 800KG
Ø Machine Size: L 1300* W 1400* H 1500mm
Ø Machine color: Blue or White or other requested color
Ø Packing: wooden case with pallet
Ø Packing volume: 6CBM
We also produce related material for making flap discs, fiberglass backing pad and single component epoxy adhesive glue etc....
FIBERGLASS DISC is made by high quality fiberglass farbic and phenolic resin.
It suitable for making below products:
· Flap disc
· Nonwoven flap disc
· Felt discs
· Clean stripe discs
We have 2 types for your choice:
T-27 - Flat shape
T-29 - Conical or Tapered shape
Specifications:
Product Size | Inner Hole | layers | Rings | Flap Disc Size |
75mm | 16.2mm | 5-8 | 1-2 or special | 100*16mm |
80mm | 16.2mm | 6-8 | 1-2 or special | 100*16mm |
88mm | 16.2mm | 6-8 | 1-2 or special | 100*16mm |
90mm-94mm | 16.2mm | 6-9 | 1-2 or special | 100*16mm |
105-107mm | 22.2mm | 7-10 | 1-2 or special | 115*22mm |
115-118mm | 22.2mm | 7-12 | 1-2 or special | 125*22mm |
170mm | 22.2mm | 7-13 | 1-2 or special | 180*22mm |
220mm | 22.2mm | 10-13 | 1-2 or special | 230*22mm |
Abrove are the common size used in the market, we provide OEM service,
We can satisfy specific request for backing pads with variable number of layers and different dimensions.
