Fiberglass Backing Pad

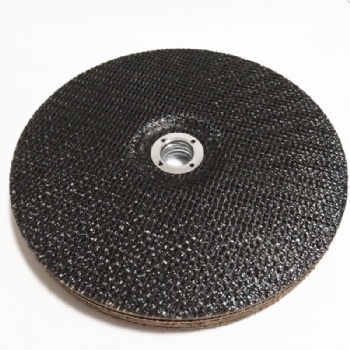

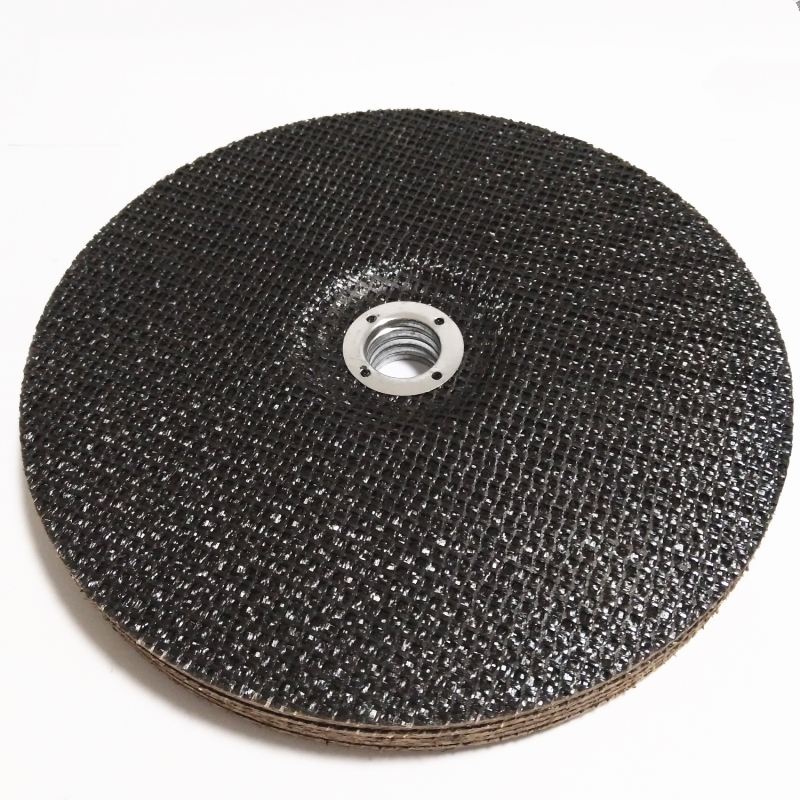

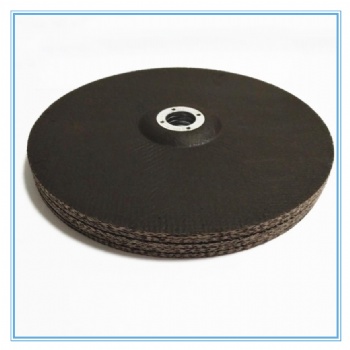

  • T27 220mm*22mm 12+1 layers fiberglass backing pad with paper
  • T27 220mm*22mm 12+1 layers fiberglass backing pad with paper
T27 220mm*22mm 12+1 layers fiberglass backing pad with paper T27 220mm*22mm 12+1 layers fiberglass backing pad with paper

T27 220mm*22mm 12+1 layers fiberglass backing pad with paper

  • Size: 220mm*22.23mm
  • Type: T27
  • Layers: 12+1 paper
  • Metal Rings: double side
  • Top layer: paper
  • INQUIRY

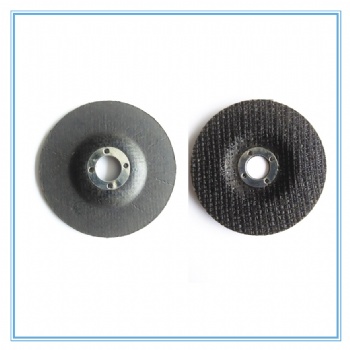

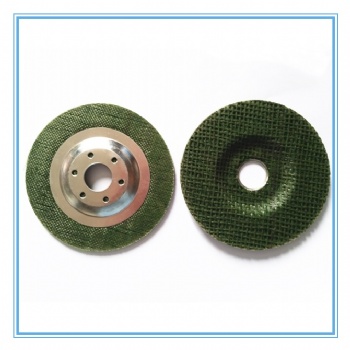

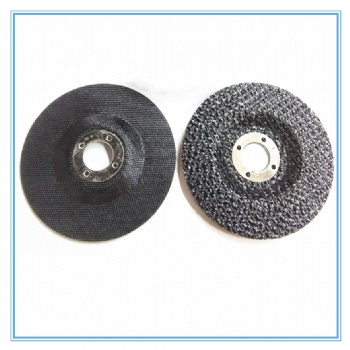

FIBERGLASS DISC is made by high quality fiberglass farbic and phenolic resin.
It suitable for making below products:

·       Flap disc
·       Nonwoven flap disc
·       Felt discs
·       Clean stripe discs


We have 2 types for your choice:
T-27 - Flat shape
T-29 - Conical or Tapered shape



Specifications:

Product SizeInner Hole layersRingsFlap Disc Size
75mm16.2mm5-8 1-2 or special100*16mm
90mm-94mm16.2mm6-91-2 or special100*16mm
105-107mm22.2mm7-101-2 or special115*22mm
115-118mm22.2mm7-121-2 or special125*22mm
170mm22.2mm7-131-2 or special180*22mm
220mm22.2mm10-131-2 or special230*22mm


Abrove are the common size used in the market, we provide OEM service,

We can satisfy specific request for backing pads with variable number of layers and different dimensions.
